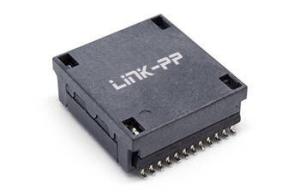

Name: 4pr PoE HD8004FNL SMT LAN Magnetic Module ROHS Compliant
Brand: LINK-PP
Price: 1.0 USD

Brand Name : LINK-PP

Model Number : HD8004FNL

Certification : ROHS Compliant

Place of Origin : China

MOQ : 50pcs

Price : $1.0-$2.5

Payment Terms : TT, NET30/60/90 Days

Supply Ability : 6.5million-PCS/Month

Delivery Time : Ships within 1-2 weeks

Packaging Details : TAPE & REEL

Number of Channels/Ports : Single Port

Mounting Style : SMT

PoE Power Rating : 60 W

Data Rate : HD BASE-T

Length : 13.72 mm

Width : 15.24 mm

Height : 5.72 mm

Isolation Voltage (V) : 1500VAC

Contact Now

SMT Mounting Style enables automated PCB assembly, increasing manufacturing efficiency and precision.
Compact design (13.72 mm x 15.24 mm x 5.72 mm) suitable for modern, space-constrained electronic devices.
They are specifically designed for HDBaseT applications, facilitating the transmission of ultra-high-definition video, audio, Ethernet, control, and power over a single cable.
Supports the high data rates required for HDBaseT technology, ensuring superior signal transmission quality.
Single port design for streamlined integration into networking devices.
Supports Power over Ethernet Plus (PoE+), delivering power over all four pairs of the Ethernet cable, thus supporting higher power requirements of connected devices.
Maintains a 1:1 turn ratio, ensuring consistent voltage levels and optimal signal integrity.
Reliable performance within a wide temperature range(0°C to +70°C), suitable for various environmental conditions.
Provides a high isolation voltage of 1500 VAC, ensuring safe and reliable electrical isolation.

Items/Part Number	HD8004FNL LAN Magnetic Module
Specification	IEEE 802.3
Turns Ratio	1.00 ± 2%
Polarity	Per Schematic
Insertion Loss	-3.0dB MAX @ 100 KHz -1.5dB MAX (-0.8dB TYP) @ 1-400 MHz
PHY-Side Return Loss	-20dB MIN @ 1-40 MHz -20+10*log10(f/40) dB MIN @ 100-400 MHz
LINE-Side Return Loss	-20dB MIN @ 1-40 MHz -20+10*log10(f/40) dB MIN @ 40-400 MHz
Inductance (OCL)	180uH MIN @100 KHz, 100 mV
Cross	-40dB MIN @ 1-100MHz -30dB MIN @ 100-400MHz
Common Mode Rejection Ratio	-37dB MIN @ 1-100MHz -30dB MIN @ 100-300MHz -25dB MIN @ 300-500MHz
COMM to DIFF Rejection Ratio	-40dB MIN @ 1-100MHz -30dB MIN @ 100-300MHz -25dB MIN @ 300-500MHz
DC Current Carrying Capability	600 mA MAX @ 57 VDC
Input-Output Isolation	1500vrms MIN @ 60 Seconds
Operating Temperature Range	0°C - 70°C
Isolation (Pri: Sec)	1500Vrms
Note	4PAIR PoE 60W

Networking Equipment: Ideal for integration into switches, routers, and other networking devices where robust Ethernet connectivity and PoE+ support are critical.
Telecommunications: Suitable for telecom systems that demand stable data transmission and efficient power delivery.
HDBaseT Systems: Perfect for devices using HDBaseT technology, enabling seamless transmission of high-definition video, audio, control signals, and power.
High-Power Devices: Suitable for power-intensive devices like advanced IP cameras and high-performance wireless access points that require enhanced power delivery.
