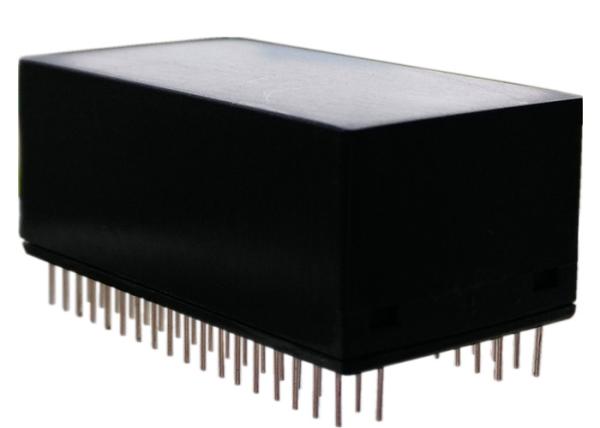

G4P209NS-1 LF | LP5025NL 1000 BASE –T Quad Port Magnetics Transformer

  • 1
  • 2
  • 3

Brand Name : LINK-PP

Model Number : LP5025NL

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 5KK/Month

Delivery Time : About 1-2 Days

Packaging Details : T&R

P/N : G4P209NS-1 LF

Port No : Quad Port

Type : Magnetic Module

Speed : 1000BASE-T

Positions : 72 Pins

HI-POT : 1500Vrms

Contact Now

Key Features of G4P209NS-1 LF – 1000BASE-T Quad Port Magnetic Module

  • Specifically designed for Ethernet 1000BASE-T quad-port applications.
  • Supports 16 pairs of Category 5 unshielded twisted pair (UTP) cable.
  • Provides excellent signal isolation and reduced common-mode emissions at the cable interface.
  • Fully compliant with IEEE 802.3ab specifications for 1000BASE-T Ethernet.
  • RoHS compliant – free from hazardous substances including Cd, Hg, Cr6+, PBB, PBDE, and Pb on external pins
  • Operating Temperature Range: 0°C to +70°C.
  • Storage Temperature Range: -25°C to +105°C.

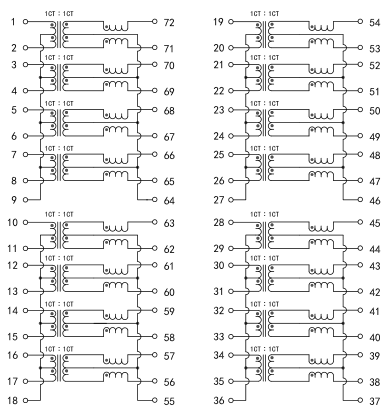

G4P209NS-1 LF Datasheet

G4P209NS-1 LF | LP5025NL 1000 BASE –T Quad Port Magnetics TransformerG4P209NS-1 LF | LP5025NL 1000 BASE –T Quad Port Magnetics Transformer

Electrical Specifications @ 25°C for G4P209NS-1 LF

Basic Parameters

Parameter Value Notes
Part Number G4P209NS-1 LF 1000 BASE-T Quad Port Magnetics Module
Turns Ratio TX 1CT:1CT ±5%
Turns Ratio RX 1CT:1CT ±5%
OCL 350 μH Min @100KHz/0.1V with 8mA DC Bias
HI-POT 1500 Vrms -

Cross-talk Attenuation (dB Min)

Frequency Value
30MHz -40
60MHz -35
100MHz -30

Insertion Loss (dB Max)

Frequency Range Value
1-100MHz -1.0

Return Loss (dB Min) @ Load 100Ω

Frequency Value
1-30MHz -18
40MHz -14.4
50MHz -13.1
60-80MHz -12
100MHz -12

Differential to Common Mode Rejection (DCMR) (dB Min)

Frequency Value
30MHz -40
60MHz -35
100MHz -30
