AFBR-79EQDZ QSFP Fiber Module 40 Gigabit Ethernet InfiniBand QSFP Pluggable

Name: AFBR79EQDZ QSFP Fiber Module 40 Gigabit Ethernet InfiniBand QSFP Pluggable
Brand: LINK-PP
Price: 0.11 USD

Brand Name : LINK-PP

Model Number : AFBR-79EQDZ

Certification : ISO 9001,ISO 14001,UL,SGS,REACH168

Place of Origin : Guangdong,China

MOQ : 10/100/25K

Price : $0.11-$35

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 350K/Month

Delivery Time : Stock

Packaging Details : 20/Tray

Specifications : AFBR-79EQDZ

Data Rate : 10.312 Gbd

Wavelength : 850nm

Maximun Distance : 100m

Fiber Type : Singlemode Glass

Emitter : DWDM EML

Voltage : 3.3V

Applications : General Purpose Data Transmission Systems

Connector : LC

Mounting : Pluggable, QSFP

Environment : Lead free / RoHS Compliant

MSL : 1 (Unlimited)

Contact Now

AFBR-79EQDZ QSFP Fiber Module 40 Gigabit Ethernet InfiniBand QSFP Pluggable

Specifications:	AFBR-79EQDZ
LINK-PP Part Number:	LPXXXXXX
Product Class:	Fiber Optics
Product Family:	Optical Transceivers
Product Series:	QSFP
Product Name:	QSFP Optical Transceivers
Status Available:	Active
RoHS:	RoHS-6 Compliance

Specifications:
Data Rate:	10.312 Gbd
Wavelength:	850nm
Maximun Distance:	100m
Fiber Type:	Singlemode Glass
Emitter:	DWDM EML
Voltage-Supply:	3.3V
Applications:	General Purpose Data Transmission Systems
Connector Type:	LC
Mounting Type:	Pluggable,QSFP
Lead Free Status / RoHS Status:	Lead Free / RoHS Compliant
Moisture Sensitivity Level(MSL):	1 (Unlimited)

Feature Description:

• Compliant to the 40GBASE-SR4 and XLPPI Specification
per IEEE 802.3ba-2010 and supporting 40G-IB-QDR /
20G-IB-DDR / 10G-IB-SDR applications
• Compliant to the industry standard SFF-8436 QSFP+
Specification Revision 3.5
• Power Level 1: Max Power <1.5W
• High port density: 21mm horizontal port pitch
• Operate at 10.3125 Gbps per channel with 64b/66b
encoded data for 40GbE application and at 10 Gbps
with 8b/10b compatible encoded data for 40G-IB-QDR
application
• Links up to 100m using OM3 fiber and 150m using
OM4 fiber
• Supports optical interoperability with 10GBASESR
modules per IEEE 802.3ae standard provided the
receiver overload of 10G modules sustains up to 2.4
dBm input optical power
• 0 to 70°C case temperature operating range
• Proven High Reliability 850 nm technology: Avago
VCSEL array transmitter and Avago PIN array receiver
• Hot pluggable transceiver for servicing and ease of
installation
• Two Wire Serial (TWS) interface with maskable
interrupts for expanded functionality
• Utilizes a standard 12/8 lane optical fiber with MTP
(MPO) optical connector for high density and thin,
light-weight cable management

Product Tags:

fiber sfp module

fiber optic transceiver

Wholesale AFBR-79EQDZ QSFP Fiber Module 40 Gigabit Ethernet InfiniBand QSFP Pluggable from china suppliers

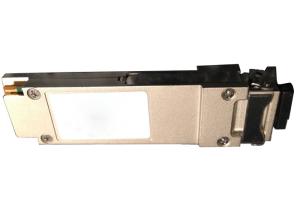

AFBR-79EQDZ QSFP Fiber Module 40 Gigabit Ethernet InfiniBand QSFP Pluggable Images
