615016240521 Stacked RJ45 Right Angle 2 x 1 Port Modular Jack Female Shielded

Name: 615016240521 Stacked RJ45 Right Angle 2 x 1 Port Modular Jack Female Shielded
Brand: LINK-PP
Price: 0.11 USD

Wholesale 615016240521 Stacked RJ45 Right Angle 2 x 1 Port Modular Jack Female Shielded from china suppliers

Place of Origin : China

Brand Name : LINK-PP

Certification : UL,RoHS,Reach,ISO

Model Number : LPJE17208CNL

MOQ : 50/500/1000/60K

Price : $0.11-$24

Packaging Details : Tray

Delivery Time : Stock

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 180K/Month

Spec : 615016240521

Alternate : LPJE17208CNL

Orientation : Up & Down

Application : HUB, PC card, Switch, Router etc

Mounting : Side Entry (Right Angle)

Cross Rf : LPJE17208CNL = 615016240521

Files : 3D PSD Step IGS Datasheet

Contact Now

615016240521 Stacked RJ45 Right Angle 2 x 1 Port Modular Jack Female Shielded

Quick Details

1. Double Port Rj45 Without Transformer LPJE17208CNL

2.Stacked 2x1 modular jack 615016240521 Pin to Pin Compatible

3.Shielded Without LEDs

4.Router, PC Mainboard, SDH, PDH

TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR MATERIAL: PBT
FLAMMABILITY RATING: UL94-V0
COLOR: BLACK
CONTACT MATERIAL: COPPER ALLOY
CONTACT TYPE: STAMPED
CONTACT PLATING: GOLD
SHIELDING: BRONZE NI PLATED
QUALITY CLASS: 500 MATING CYCLES
ENVIRONMENTAL
OPERATING TEMPERATURE: –40 °C UP TO 85 °C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING: 1.5 A
WORKING VOLTAGE: 125 VAC
INSULATION RESISTANCE: >1000 MΩ
DIELECTRIC WITHSTANDING VOLTAGE: 1 000 VAC/MIN
CONTACT RESISTANCE: 20 mΩ MAX

Product Tags:

stacked rj45 connectors

rj45 usb connector combo

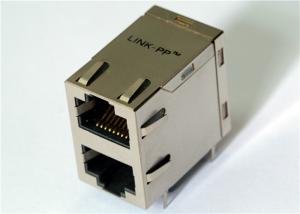

615016240521 Stacked RJ45 Right Angle 2 x 1 Port Modular Jack Female Shielded Images
