G26US-710151A Multi-port RJ45 Modular Jacks Right Angle 1 x 4 Port , Tab-up

Name: G26US710151A Multiport RJ45 Modular Jacks Right Angle 1 x 4 Port Tabup
Brand: LINK-PP
Price: 0.11 USD

Wholesale G26US-710151A Multi-port RJ45 Modular Jacks Right Angle 1 x 4 Port , Tab-up from china suppliers

Place of Origin : China

Brand Name : LINK-PP

Certification : SGS, UL,CE,ISO9001:2008,Reach

Model Number : G26US-710151A

MOQ : 50/500/1000/25K

Price : $0.11-$12

Packaging Details : Tray

Delivery Time : Stock

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 208K/Month

PN# : G26US-710151A

Made In China : SM-LPJG48819AHNL

Interface : 10/100/1000Mbps

Gender : Female,Receptacle

Application : PDH, IP Phone, xDSL modem

Samles : Available

Contact Now

G26US-710151A Multi-port RJ45 Modular Jacks Right Angle 1 x 4 Port , Tab-up

G26US-710151A

1. 1X1 Tab-up 10/100/1000M

2. Quad Port RJ45 Magjack with leds

3. Side Entry (Right Angle)

4. PDH, IP Phone, xDSL modem
Description:

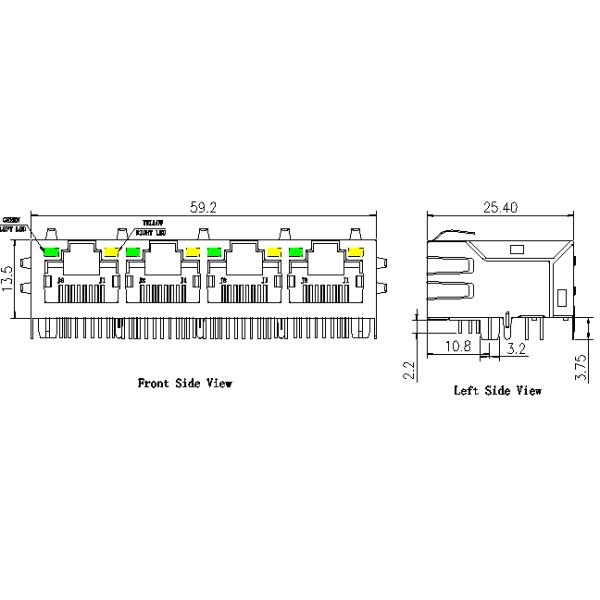

1X4 Tab-up 10/100/1000M RJ45 Magjack with leds, length 25.40mm, meeting IEEE 802.3

Electrical Specifications @25℃
1.Turns Ratio: 1CT∶1CT
2.OCL: 350uH MIN
@100KHz,0.1V,8mA DC BIAS
3.Insertion Loss:
1～100MHz:-1.0dB MAX
100～125MHz:-1.2dB MAX
4.Return Loss(@100Ω±15Ω):
1～30MHz:-18dB MIN
30～60MHz:-16dB MIN
60～80MHz:-12dB MIN
80～100MHz:-10dB MIN
5.Crosstalk:
1～30MHz:-40dB MIN
30～60MHz:-35dB MIN
60～100MHz:-30dB MIN
6.Common Mode Rejection:
1～60MHz:-40dB MIN
60～100MHz:-30dB MIN
7.Hipot Test: 1500Vrms MIN
8.Operating Temperature: 0℃ TO +70℃.

G26US-710151A Multi-port RJ45 Modular Jacks Right Angle 1 x 4 Port , Tab-up
