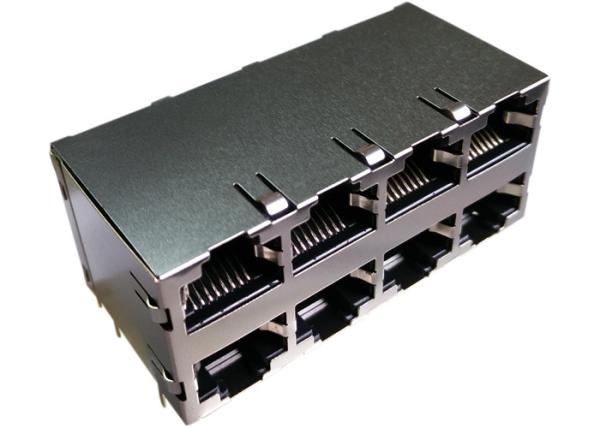

GA2X-2488S-50C5 RJ45 Modular Jack 8p8c Ganged Connector 2x8 Ports

Name: GA2X2488S50C5 RJ45 Modular Jack 8p8c Ganged Connector 2x8 Ports
Brand: LINK-PP
Price: 0.11 USD

Wholesale GA2X-2488S-50C5 RJ45 Modular Jack 8p8c Ganged Connector 2x8 Ports from china suppliers

Place of Origin : China

Brand Name : LINK-PP

Certification : UL,RoHS,Reach,ISO

Model Number : GA2X-2488S-50C5

MOQ : 50/500/1000/60K

Price : $0.11-$24

Packaging Details : Tray

Delivery Time : Stock

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 180K/Month

PN# : GA2X-2488S-50C5

Made In China : LPJE308DNL

Port : 2x4

Application : cat5/6e

LEDs : Without

Samples : Available

Contact Now

GA2X-2488S-50C5 RJ45 Modular Jack 8p8 PCB JACK Specification

1.Insulation Resistance:500MΩMIN @ 500 VDC
2.Withstanding Voltage:AC1000V 50Hz or 60Hz 1min.
3.Durability:600 Mating Circles MIN.
4.Gold Plating:(Gold Flash;1.5;3;6;15;30;50)U" Inch
5.(1)Storage: -40℃ to +85℃
(2)Opertion: -40℃ to +85℃
(3)Wave solder temperture:230℃ to 250℃,5～10 Sec.c Ganged Connector 2x8 Ports

GA2X-2488S-50C5 RJ45 Modular Jack 8p8c Ganged Connector 2x8 Ports
